HM86 Industrial Control All-in-one Computer Motherboard

Industrial Control All-in-one Computer — Model ITX-HM86

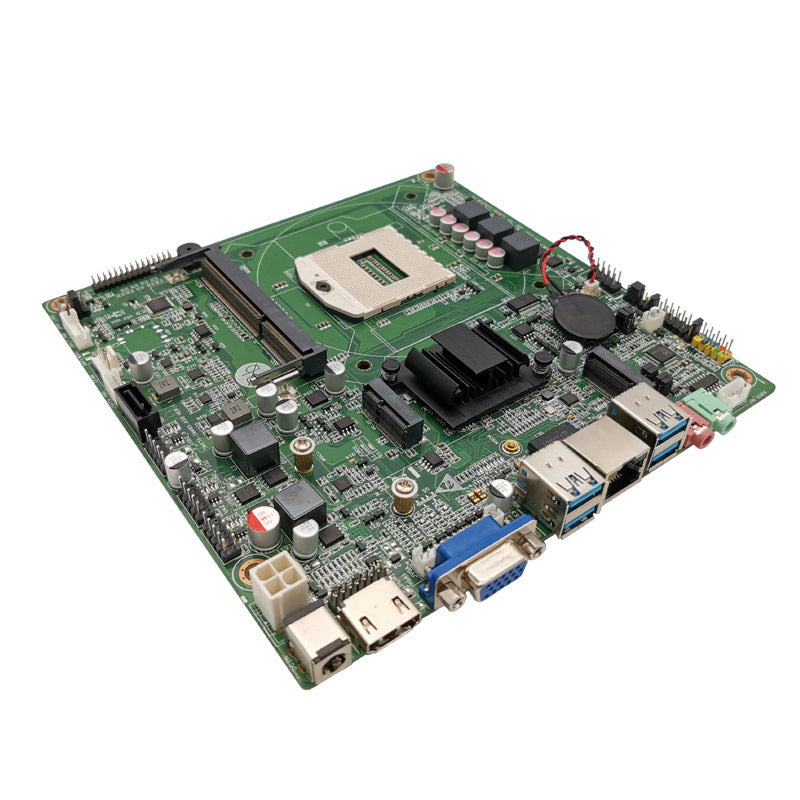

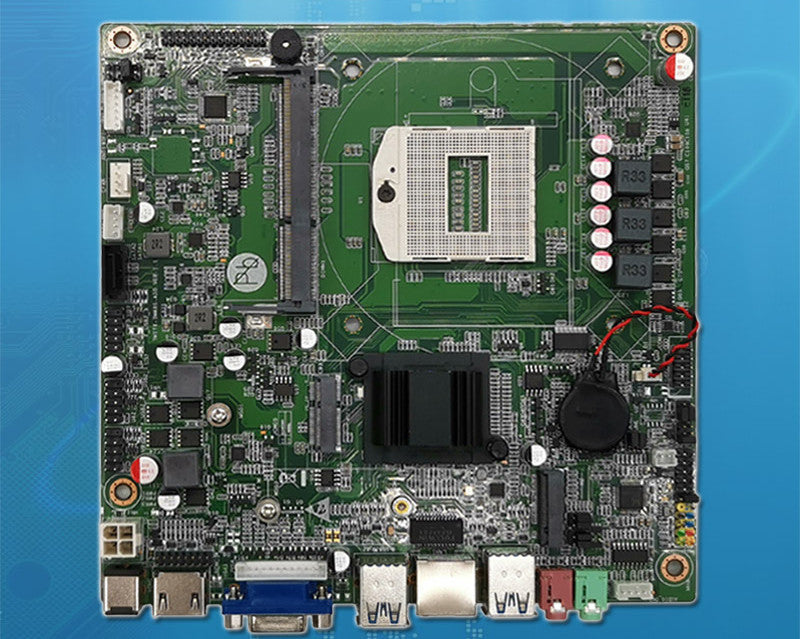

The ITX-HM86 is a Standard Thin Mini-ITX motherboard designed for robust and reliable performance, perfect for industrial environments. This Industrial Control All-in-one Computer supports Intel’s 4th generation Core i3/i5/i7 processors and features the Intel HM86 chipset, delivering powerful processing capabilities for demanding control applications.

Equipped with a single-channel SO-DIMM memory slot, it supports DDR3L 1333/1600MHz memory up to 8GB, ensuring smooth multitasking in your Industrial Control All-in-one Computer setup. The motherboard offers versatile display options, including VGA, HDMI (supporting up to 4K/30Hz HD display), and LVDS interfaces with dual-channel 24-bit support, allowing synchronous output across three displays.

Networking is handled via a Realtek network chip with a Gigabit RJ45 interface, featuring Wake-on-LAN (WOL) and PXE support for efficient remote management—key functionalities for any Industrial Control All-in-one Computer in a factory or automation setting.

Storage options include a SATA 2.0 hard disk interface and an M.2 socket, while the audio system uses a Realtek HD chip with integrated amplifier support for 3W to 5W speakers, enhancing audio feedback or alerts. Expansion capability is provided through an additional M.2 slot supporting Wi-Fi modules.

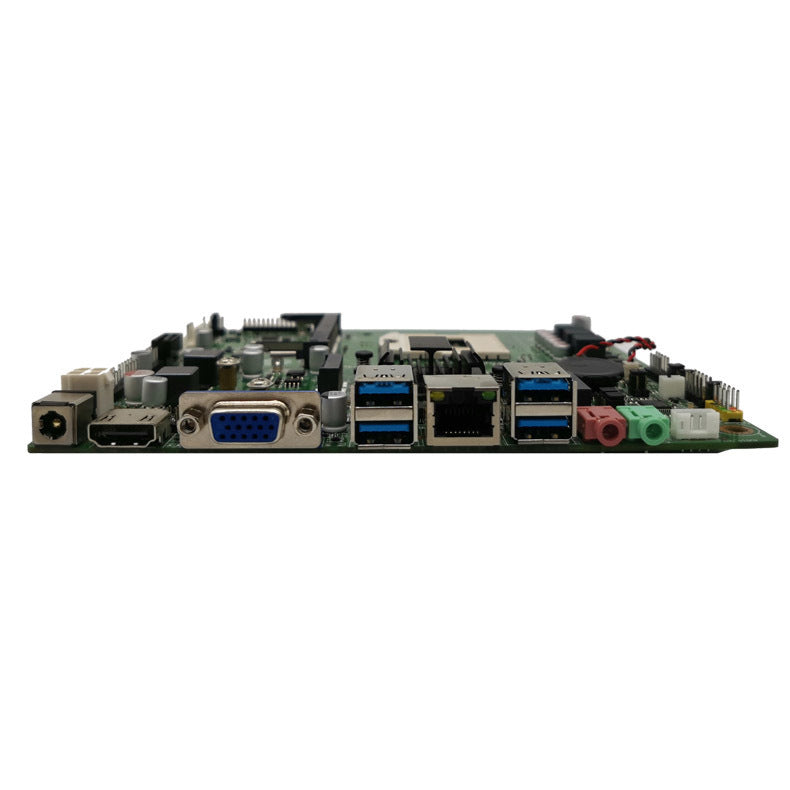

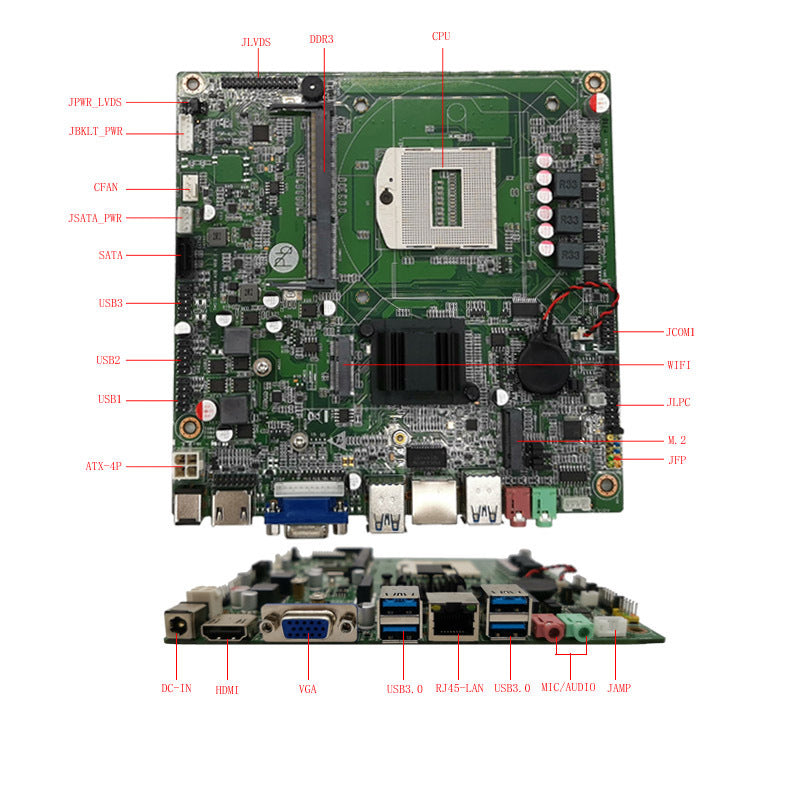

The backplane I/O includes 4 USB 3.0 ports, VGA, HDMI, RJ45 Gigabit Ethernet, audio line-out, mic input, and a 12V DC power input. The built-in interfaces offer a wide array of connectivity for front panel controls, fan interface, serial ports, and LVDS displays—making this Industrial Control All-in-one Computer highly adaptable to varied industrial applications.

With support for Windows 7, Windows 10, and Linux operating systems, and operating temperature ranges from -15°C to 60°C, the ITX-HM86 ensures stable performance under harsh conditions typical of industrial environments.

Compact yet powerful, measuring 170mm x 170mm, this Industrial Control All-in-one Computer is engineered to meet the strict demands of modern industrial automation, control, and embedded systems.
