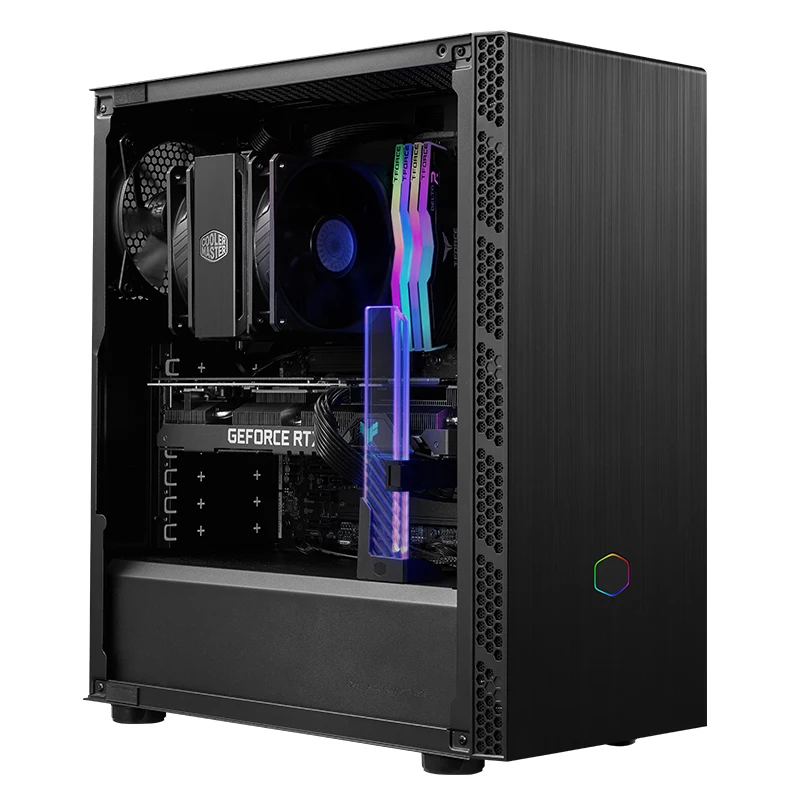

Cooler Master MB600L V2 Case Steel Glass Side Panel Mid Tower Chassis ATX MATX MINI-ITX Computer Office Games Case
Cooler Master MB600L V2 Case Steel Glass Side Panel Mid Tower Chassis ATX MATX MINI-ITX Computer Office Games Case
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: Cooler Master
Type: Mid Tower
Form Factor: ATX
Form Factor: MicroATX
Form Factor: Mini-ITX
RGB Support: NO RGB
Case Weight: 6.5
Material: aluminum
Material: Tempered Glass
Material: others
Origin: Mainland China
Power Model: ATX
Case Size: 405.5x204x455.3mm
Model Number: MB600L V2
With Side Panel Window: YES
Chassis Type: Desktops
Internal 3.5" Drive Bays: 2
Application: Desktop
Series: MB600L V2
Radiator Size: 240mm
140mm Fan Options: 2
120mm Fan Options: 6
Power Supply Mounted: Bottom
Max GPU Length: 350
With Fan: no
Max CPU Cooler Height: 161
Max PSU Length: 160
Front Ports: 1 x USB 3.2 Gen 1 Type A, 1 x USB
Internal 2.5" Drive Bays: 2
With Power Supply: no
Product parameters
Product Name: MasterBox MB600L V2
Product model: MB600L2-KGNN-SCN
External color: black
Raw materials: steel, plastic, tempered glass
Dimensions (L x W x H): including protrusions 405.5x204x455.3mm
Excluding protrusions 400x204x455.3mm
Volume (excluding protrusions): 37.15L
Motherboard compatibility: Mini ITX, Micro ATX, ATX
Expansion slot: 7
Hard drive rack: 2.5 "/3.5" HDD * 2/2.5 "SSD * 2
I/O panel: 1 x USB 3.2 Gen 1 Type A, 1 x USB 2.0
1 x 3.5mm Headset Jack (Audio + Mic)
Fan support: top 2 x 120mm, 2 x 140mm
Front 3 x 120mm, 2 x 140mm
Rear 1 x 120mm
Water cooling support: top 120/240mm (RAM height limit 32mm; install RAM first, then water cooling exhaust)
Front 120/140/240/280mm
Rear 120mm
CPU heat sink length limit: 161mm
Power supply length limit: 160mm
Graphics card length limit: 350mm (w/o front fans&radiators)
Cable management space: 18.5mm behind the motherboard
Dust filter: front, top, bottom
Power compatibility: bottom mounted, ATX
