3D Printer Motherboard - MKS Gen-L V1.0 - Compatible with RAMPS & Marlin

Item Description:

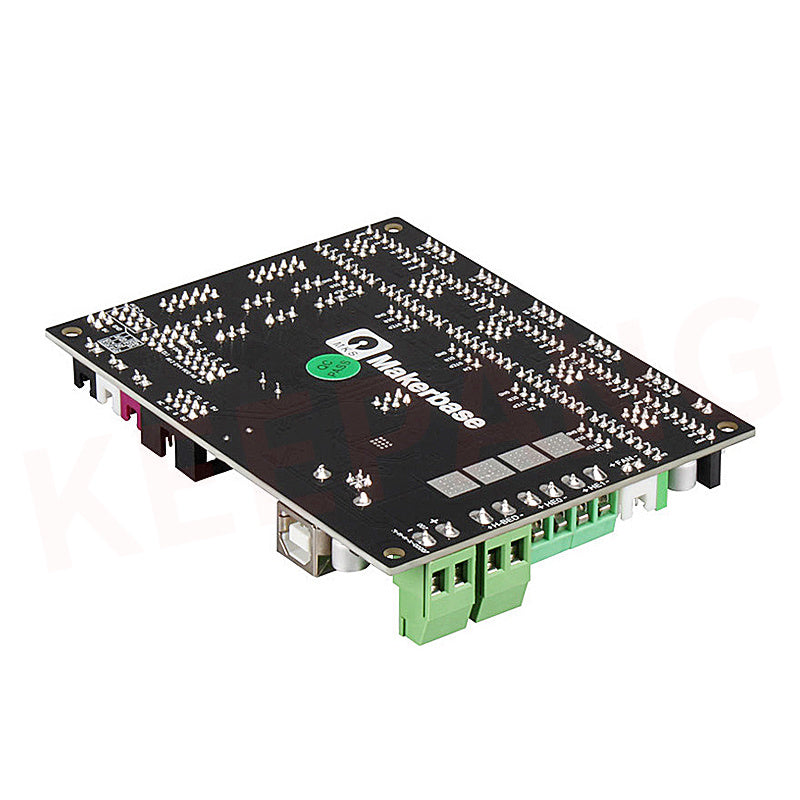

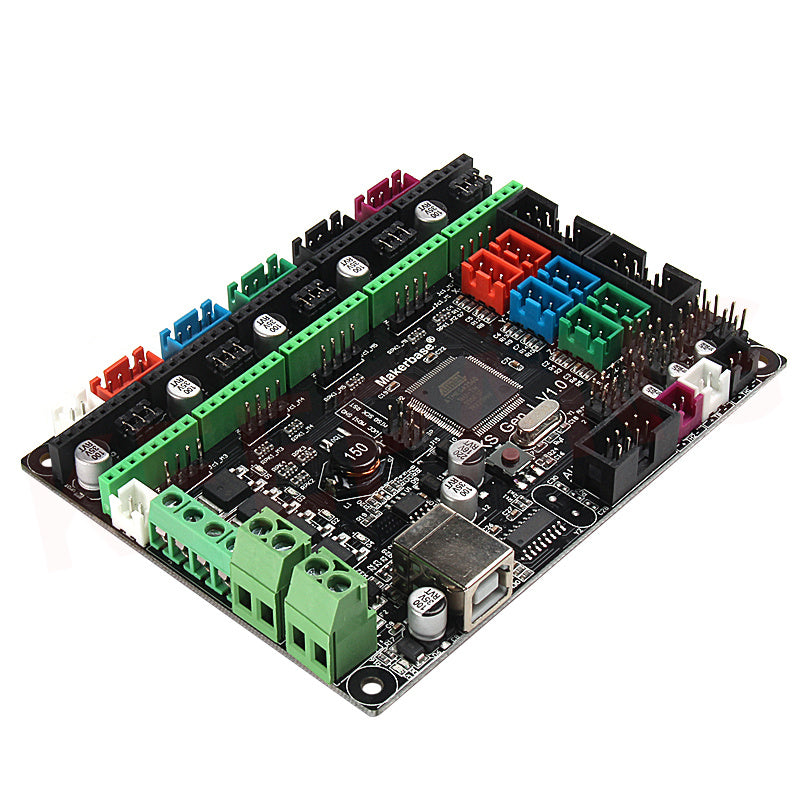

The MKS Gen-L V1.0 3D Printer Motherboard is a versatile, cost-effective control board that integrates the functionality of RAMPS 1.4 and an ATmega2560 into a single, compact unit. It offers improved performance, simplified connections, and the ability to support multiple driver types, making it a perfect upgrade for 3D printer enthusiasts, makers, and professionals.

This motherboard is compatible with open-source Marlin firmware, providing the same configuration setup as RAMPS 1.4. It supports a range of motor drivers, including A4988, DRV8825, and TMC2100, with the option to add external drivers for larger motors like the 57 and 86 stepper motors. Featuring high-quality MOSFETs for heat dissipation, the board ensures stable performance, even during long printing sessions.

With support for 12V-24V input, the MKS Gen-L V1.0 reduces the load on the hotbed current, solving common heating issues. This board is also designed for easy assembly with color-coded terminals for XYZ motor and limit switch connections, making installation simple and error-free.

Key Features:

• All-in-One Design: Combines the 2560 and RAMPS 1.4 control board functions into a single, compact design, reducing the risk of failure from multiple interfaces.
• Driver Compatibility: Supports various stepper motor drivers, including A4988, DRV8825, TMC2100, and allows for external large driver connections for 57 and 86 motors.
• External Driver Support: Provides reserved drive signals to power large stepper motors.
• Powerful MOSFETs: Uses high-quality MOSFETs to reduce heating and ensure long-term stability.
• 12V-24V Power Input: Supports 12V and 24V power inputs, reducing the load on the hotbed and enabling improved heat dissipation.
• Reliable Filter Circuit: Includes a filter circuit to reduce interference, ensuring smooth, uninterrupted printing.
• CH340 Serial Chip: Uses a CH340 serial chip to make driver installation easier and more stable than previous models using the 16U2 chip.
• Marlin Firmware Support: Fully compatible with Marlin firmware, allowing easy configuration and replacement of RAMPS 1.4 boards.
• User-Friendly Design: Color-coded terminal blocks for the XYZ motors and limit switches, reducing the risk of wiring errors.
• LCD & Touchscreen Compatibility: Directly supports connection with 2004 LCD screens, TFT28, and TFT32 touchscreens, offering greater flexibility for users.

Specifications:

• Model: MKS Gen-L V1.0
• Processor: ATmega2560
• Power Input: 12V to 24V DC
• Driver Support: A4988, DRV8825, TMC2100 (replaceable motor drivers)
• External Drive Support: External large driver support for 57 and 86 motors
• Firmware Support: Marlin open-source firmware
• Interfaces: Support for 2004 LCD screen, TFT28, TFT32 touchscreens
• Power Efficiency: Reduces hotbed current by 75% with 24V input, improving heat dissipation.
• Size: Compact design for easy integration into most 3D printers.
• Heat Dissipation: High-quality MOSFETs for improved cooling and heat resistance.
• Serial Chip: CH340 chip for reliable, easy-to-install drivers.

Package Includes:

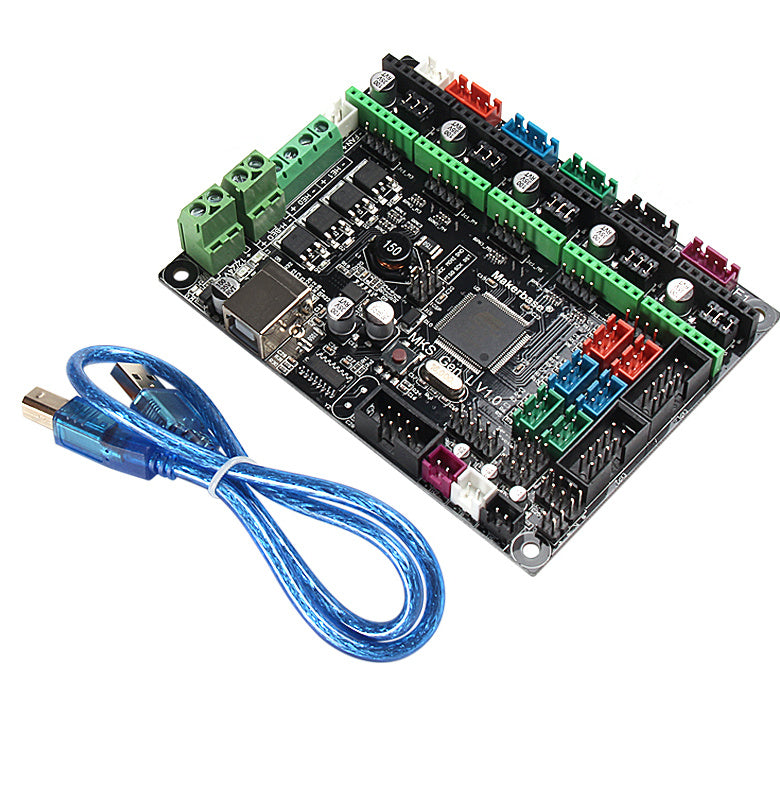

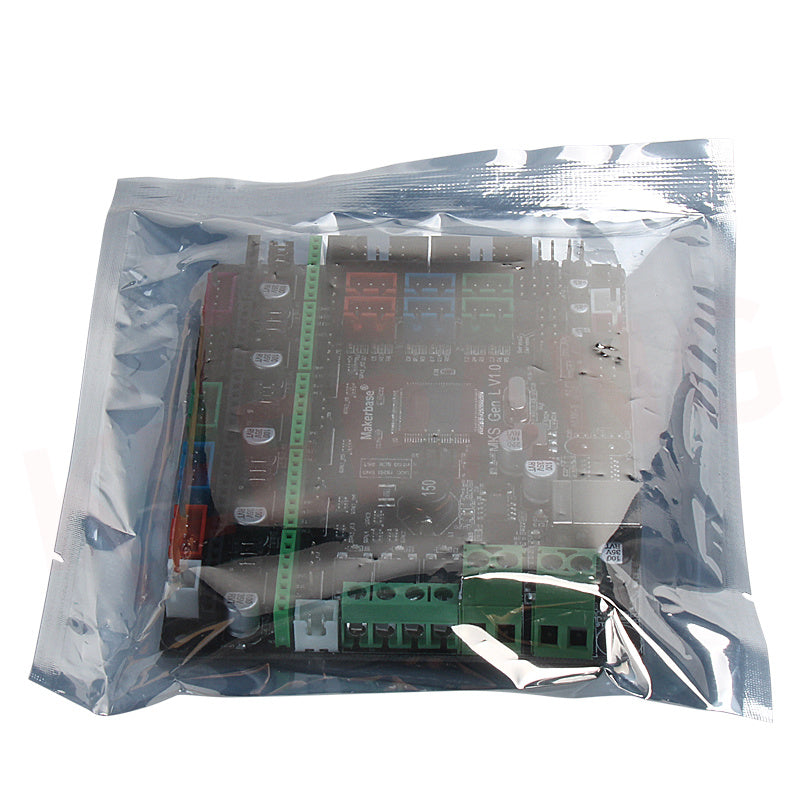

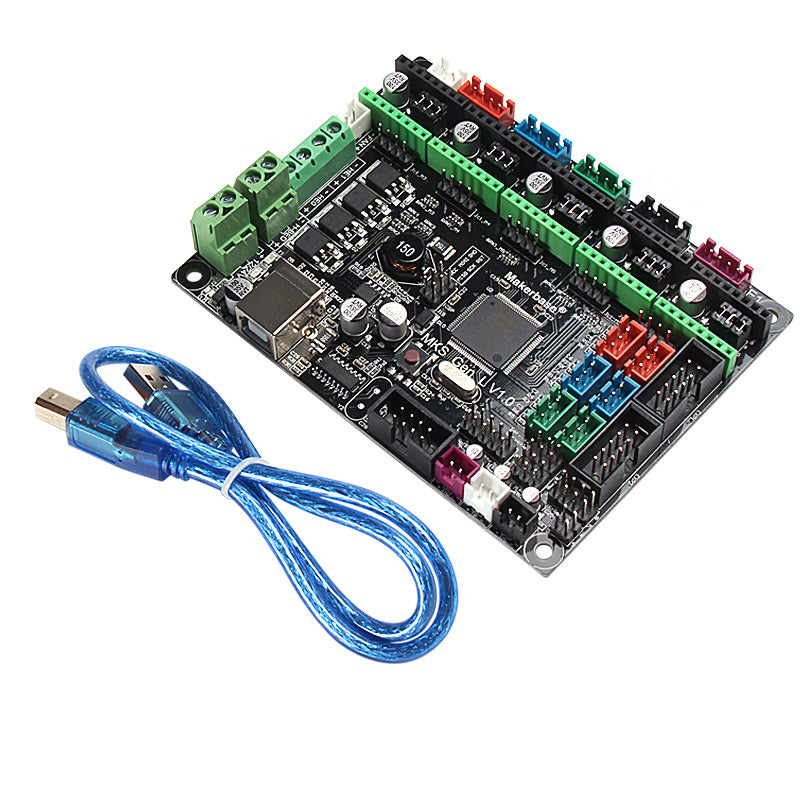

• 1 x MKS Gen-L V1.0 Motherboard
• 1 x USB Cable

Why Choose the MKS Gen-L V1.0?
The MKS Gen-L V1.0 3D Printer Motherboard offers improved performance, simplified wiring, and broad compatibility with industry-standard components. This versatile control board supports Marlin firmware, a wide range of motor drivers, and customizable driver connections for larger motors. Whether you're upgrading an existing 3D printer or building a new one, the MKS Gen-L V1.0 ensures smooth, stable, and reliable printing.

Order now to upgrade your 3D printer with the cost-effective, high-performance MKS Gen-L V1.0 3D Printer Motherboard and experience better efficiency, durability, and control!
