SPECIFICATIONS

Brand Name: Jonsbo

Type: Full Tower

Form Factor: ATX

Form Factor: E-ATX

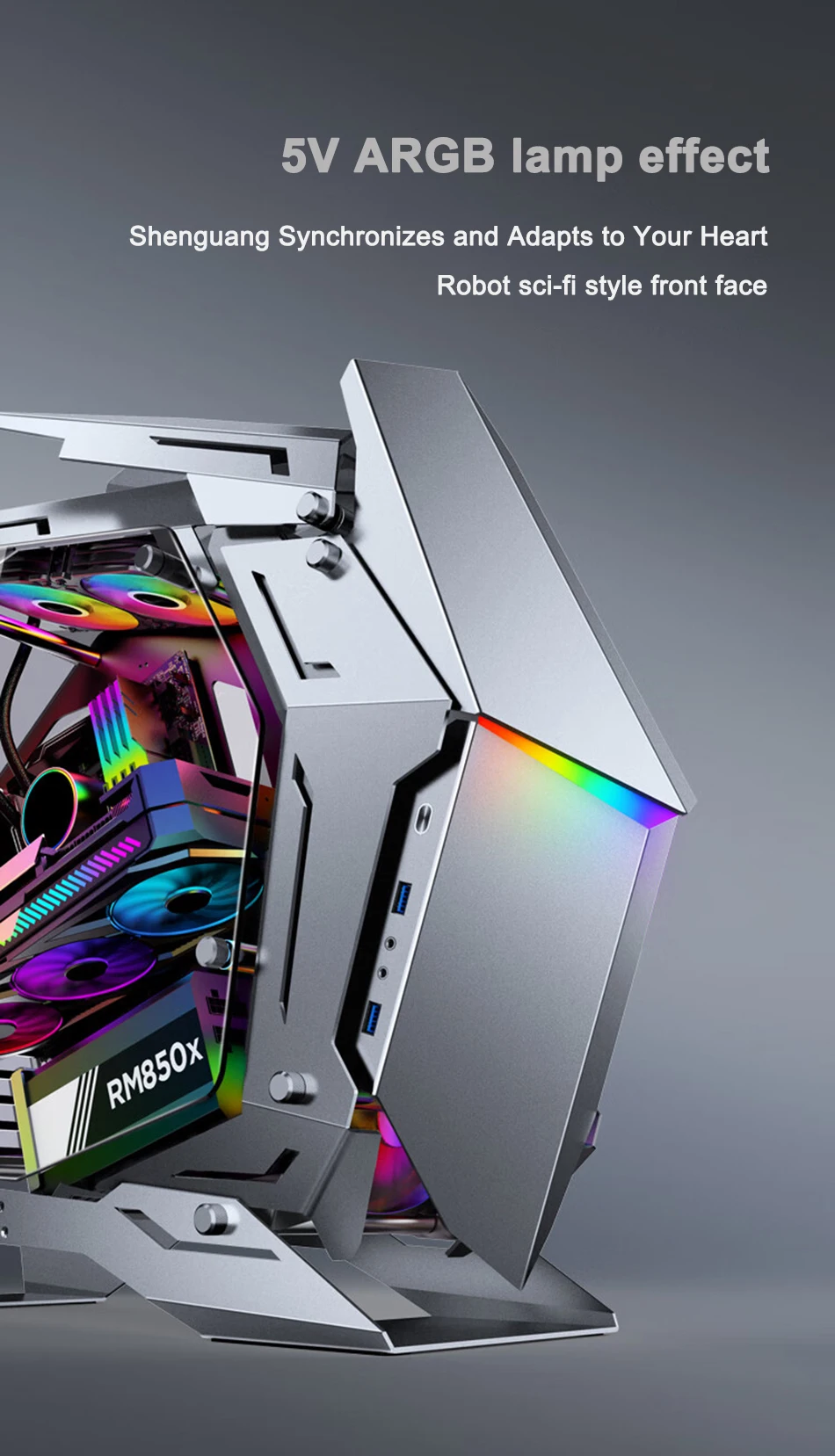

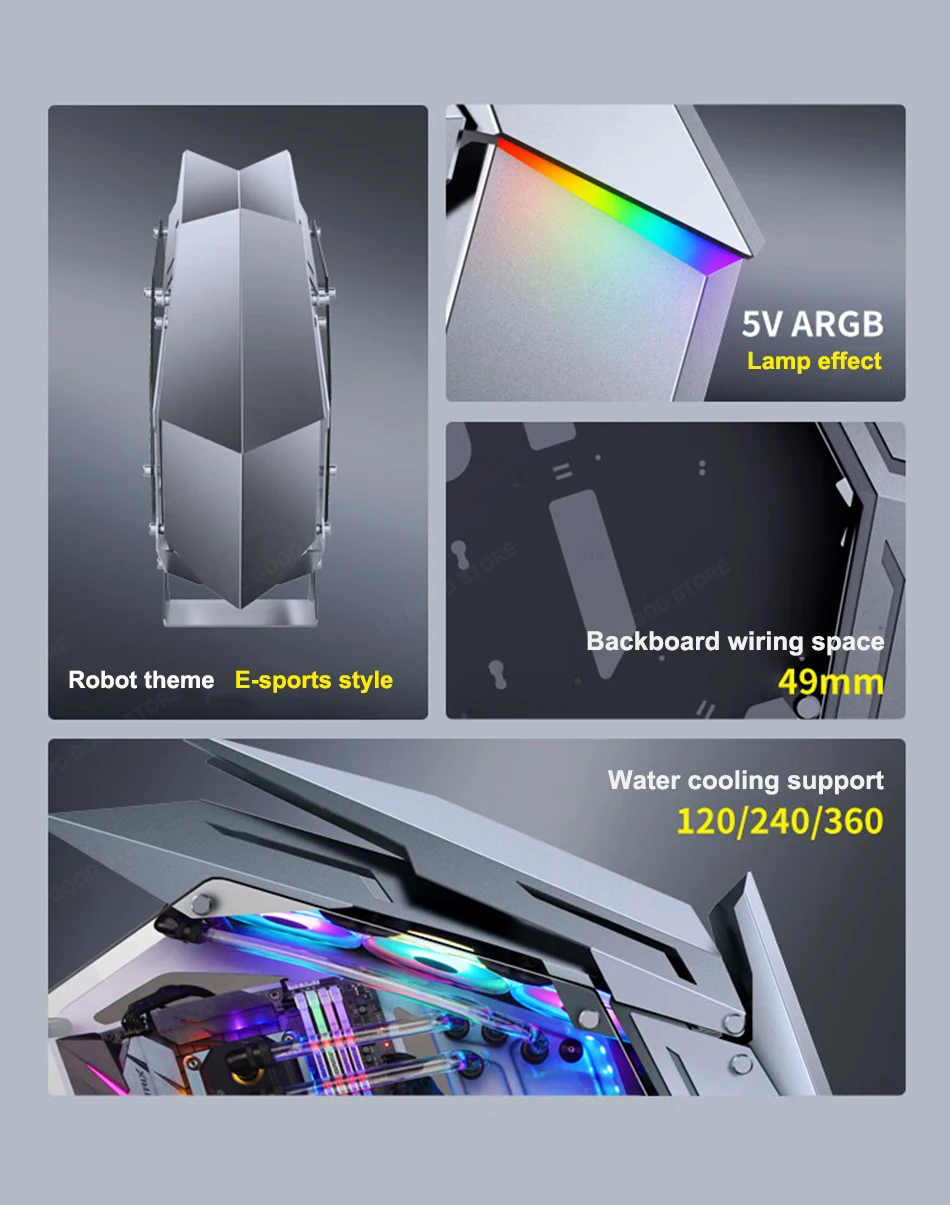

RGB Support: A-RGB

Case Weight: 10

Material: Aluminum Alloy

Material: Tempered Glass

Origin: Mainland China

Power Model: ATX

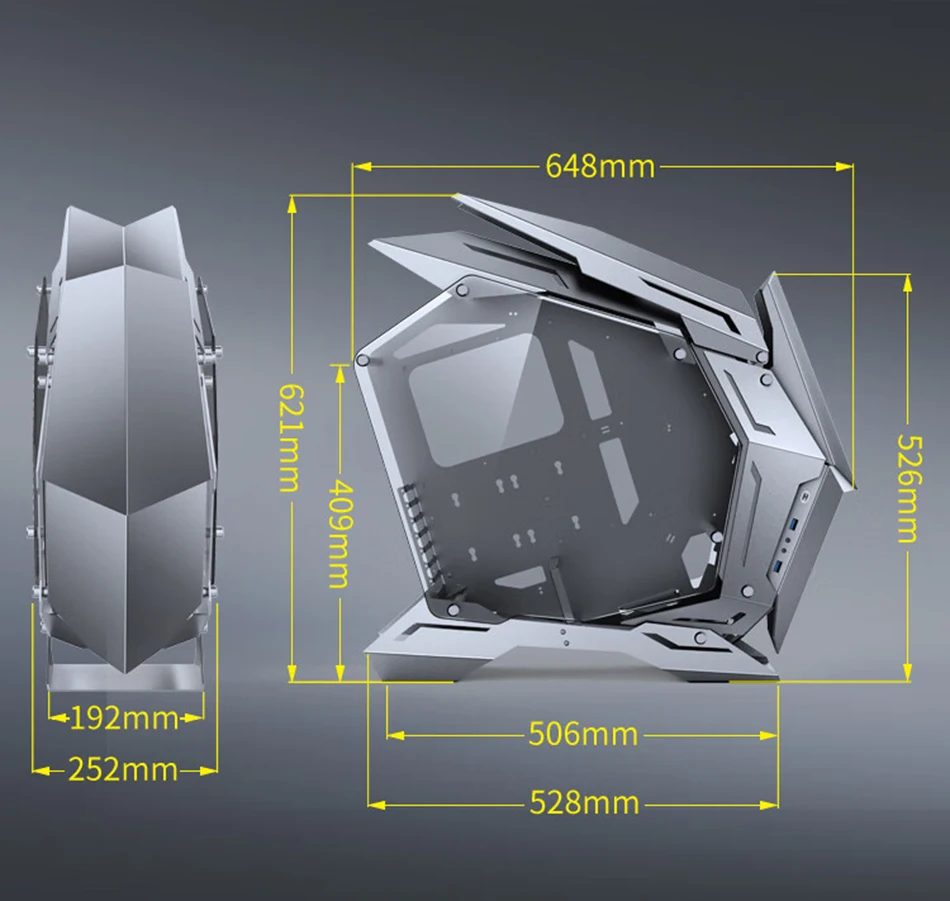

Case Size: 232MM (W) * 647MM (D) * 620MM (H)

Model Number: MOD3

With Side Panel Window: YES

Chassis Type: Desktops

Internal 3.5" Drive Bays: 1

Application: Desktop

Series: MOD3

Radiator Size: 360mm

120mm Fan Options: 3

Power Supply Mounted: Top

Max GPU Length: 400

With Fan: no

Max CPU Cooler Height: 170

Max PSU Length: 195

Front Ports: USB3.0*2/AUDIO*1/MIC*1

Internal 2.5" Drive Bays: 2

With Power Supply: no

Product parameters

Model： MOD3 Gray/Pink/Black/White
Dimension: 232mm(W)×647mm(D)×620mm(H)
Material: Structure Material:2.5+2.0 Aluminum; Side Plate:4.0mm Tempered Glass Plate

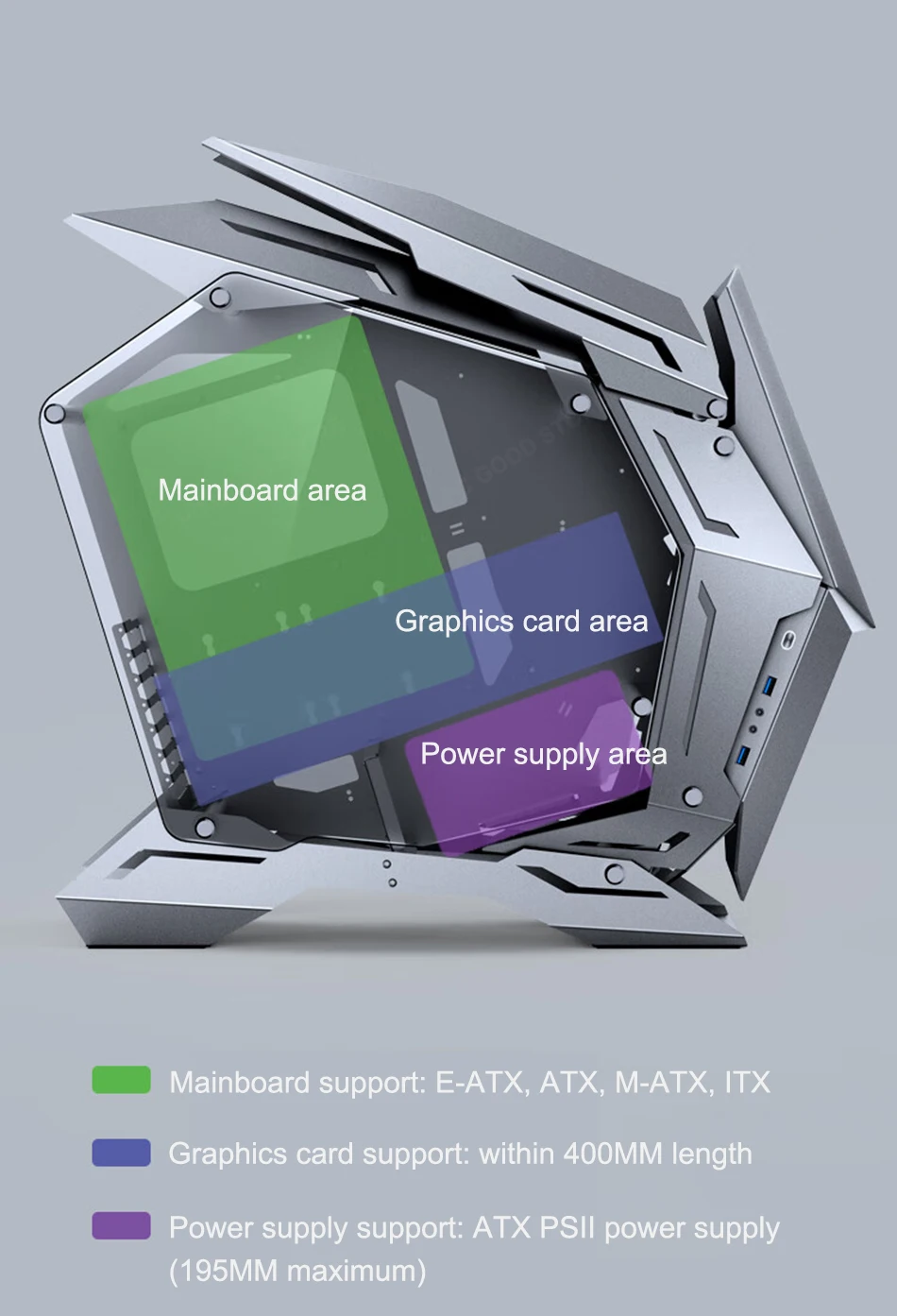

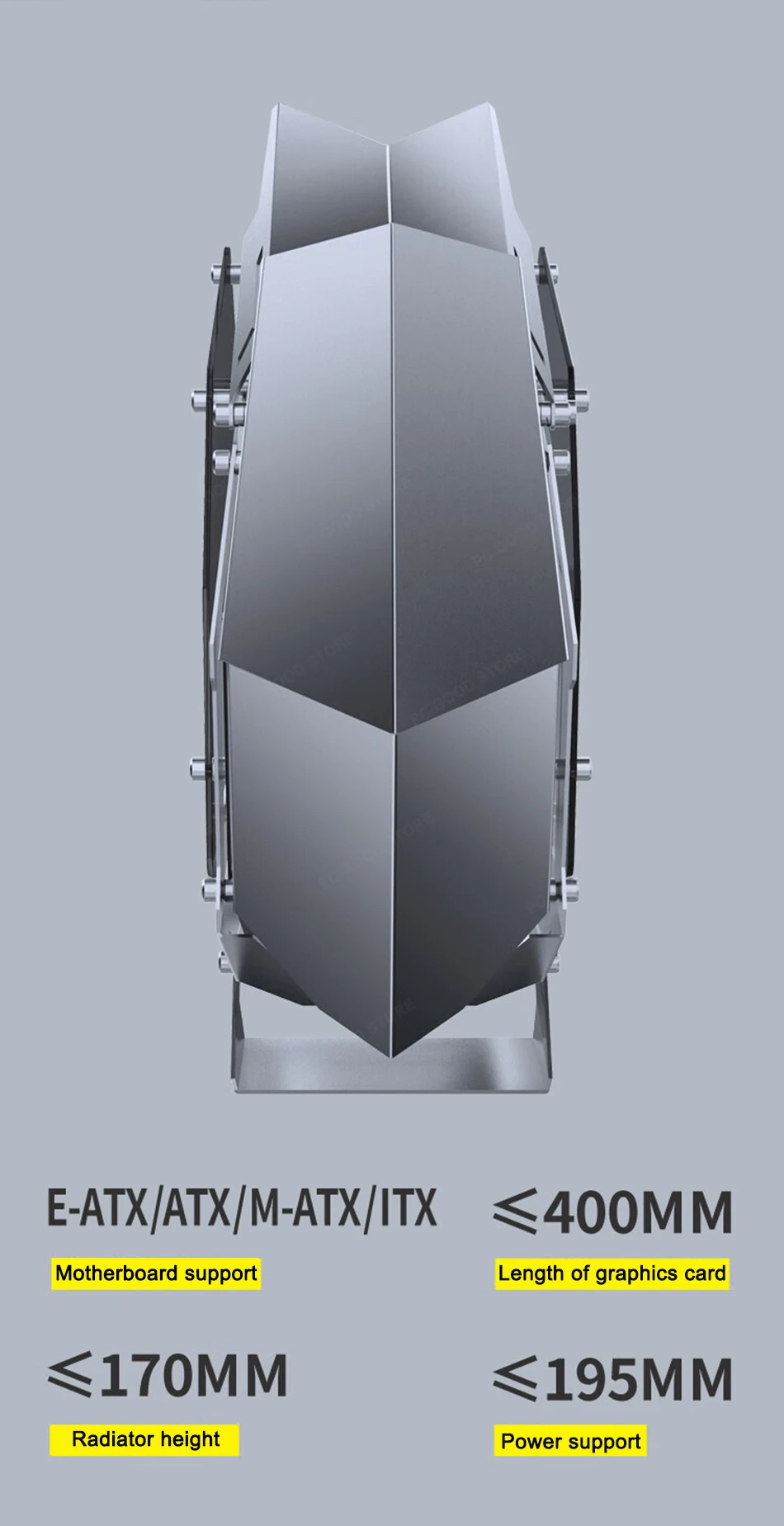

Motherboard: EATX; ATX; MATX; ITX
CPU Cooler: Not higher than 170mm
Display Card: Not longer than 400mm

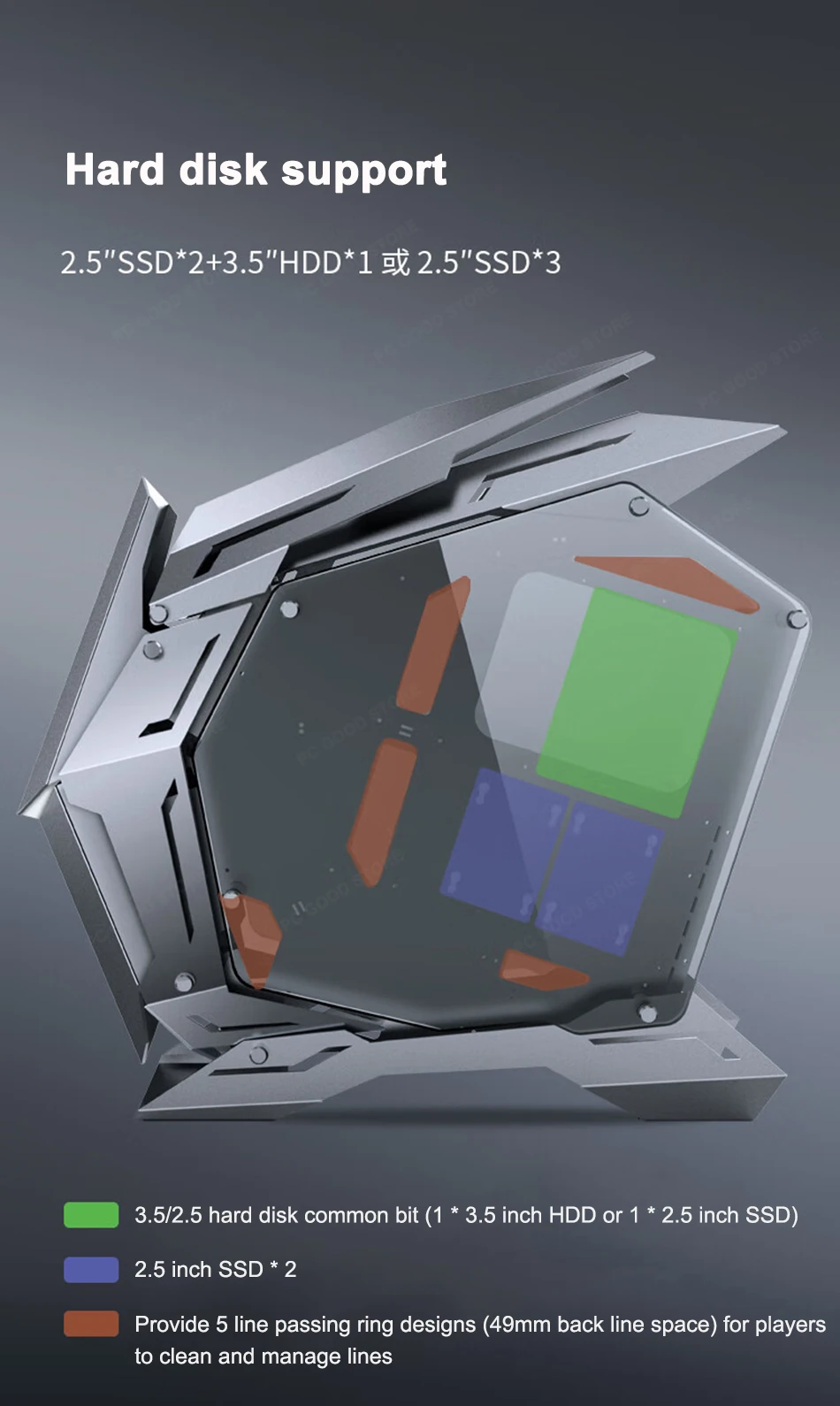

Drive Bay: 2.5SSD×2+3.5HDD×1 Or 2.5SSD*3
Front I/O Port: USB 3.0×2/AUDIO×1/MIC×1

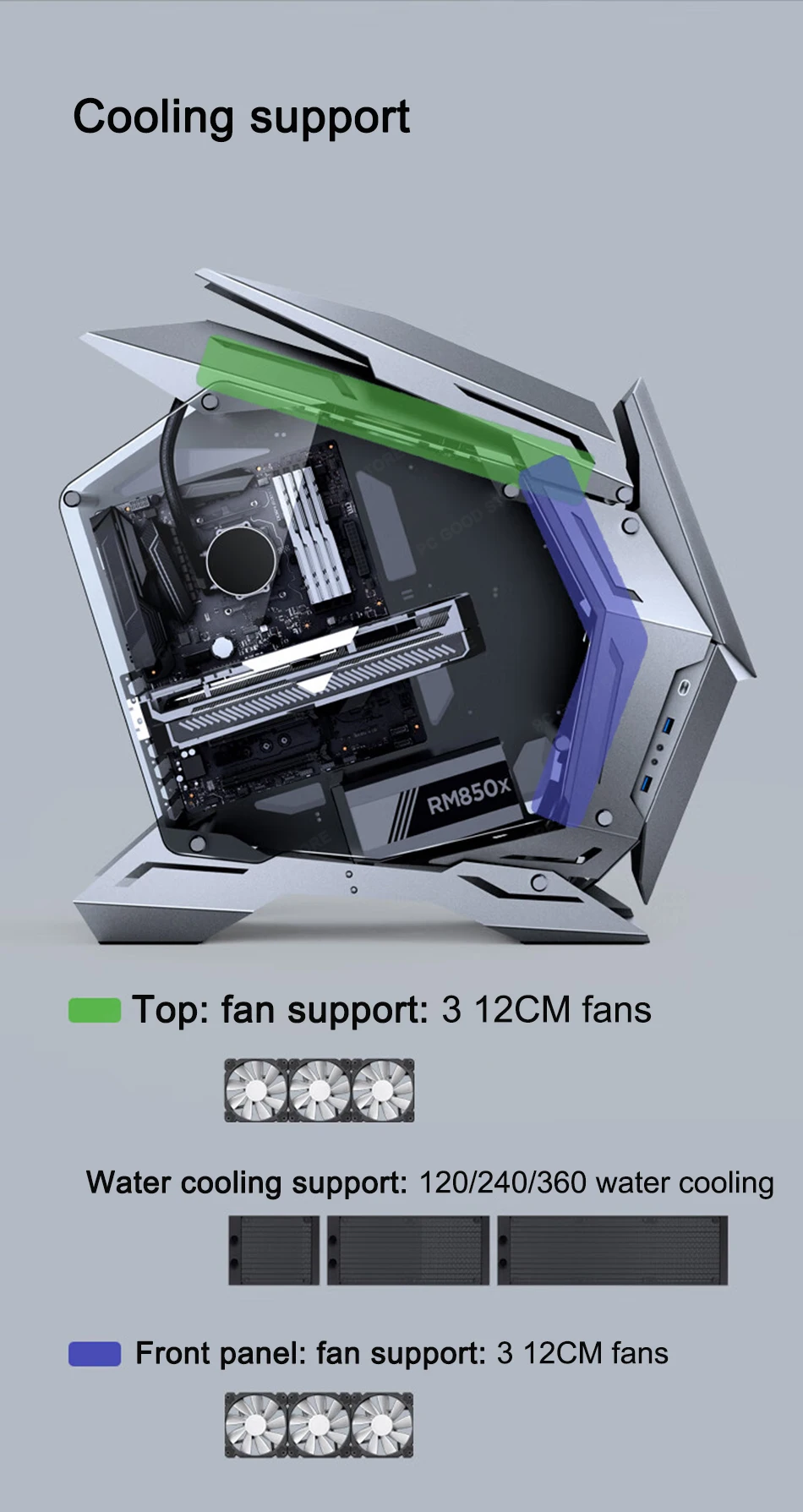

Cooling Systerm: Top: 3×120mm Fan (optional) Front:3×120mm Fan (optional)
Power Supply: Standard ATX PS2(Not longer than 195mm)
Expansion Slot: 7
Liquid Cooler： 240/360
Weight: Net 8kg
